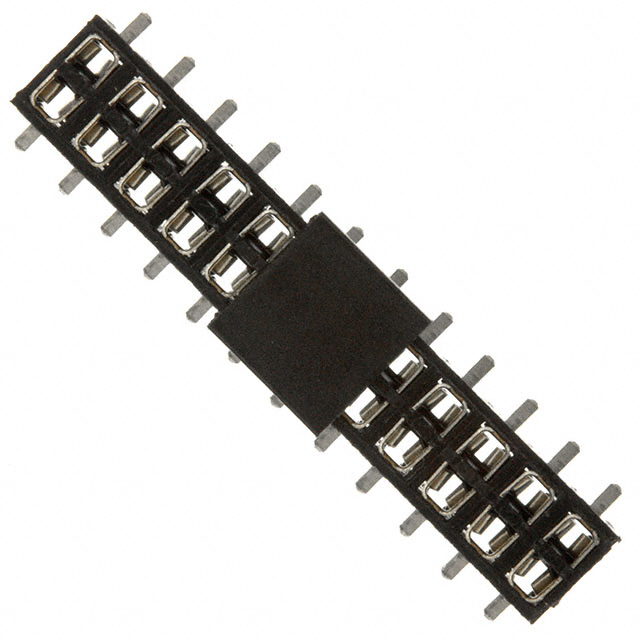

153224-2000-RB-WD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 153224-2000-RB-WD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 153224-2000-RB-WD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 153224-2000-RB-WD |
|---|---|
| Manufacturer | 3M |
| Description | CONN 2MM SKT 24POS THRU-BRD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.531 | $1.469 | $1.224 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 153224-2000-RB-WD | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 2MM SKT 24POS THRU-BRD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31160 pcs | Data sheet | 1532 Series |
| Category | Connectors, Interconnects | Voltage Rating | 500VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | 1532 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Cut Tape (CT) |
| Other Names | 3M5420CT | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.129" (3.28mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 24 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | - |
