153214-2000-RB-WB

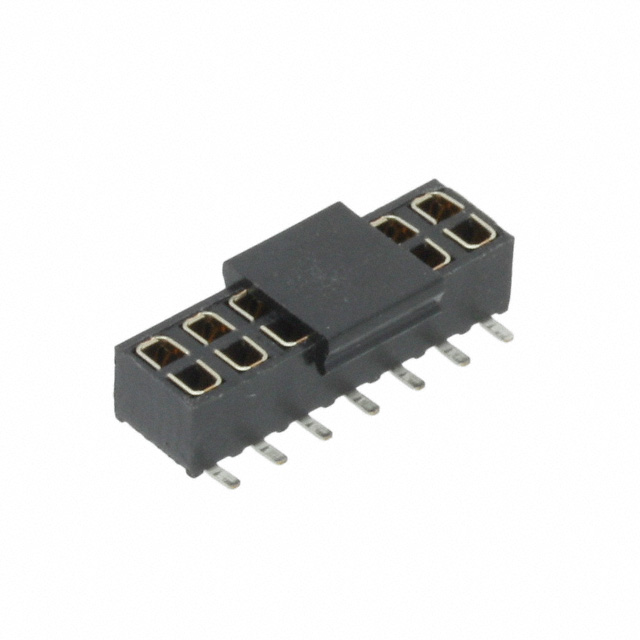

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 153214-2000-RB-WB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 153214-2000-RB-WB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 153214-2000-RB-WB |
|---|---|
| Manufacturer | 3M |
| Description | CONN 2MM SKT 14POS THRU-BRD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2400 pcs | ||||
|---|---|---|---|---|---|
| $0.541 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 153214-2000-RB-WB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 2MM SKT 14POS THRU-BRD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56705 pcs | Data sheet | 1532 Series |
| Category | Connectors, Interconnects | Voltage Rating | 500VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | 1532 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 05111166125 1532142000RBWB 3M5414TR 5111166125 51111661253 7000057160 80000903999 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.129" (3.28mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 14 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | - |
