151212-8422-RB

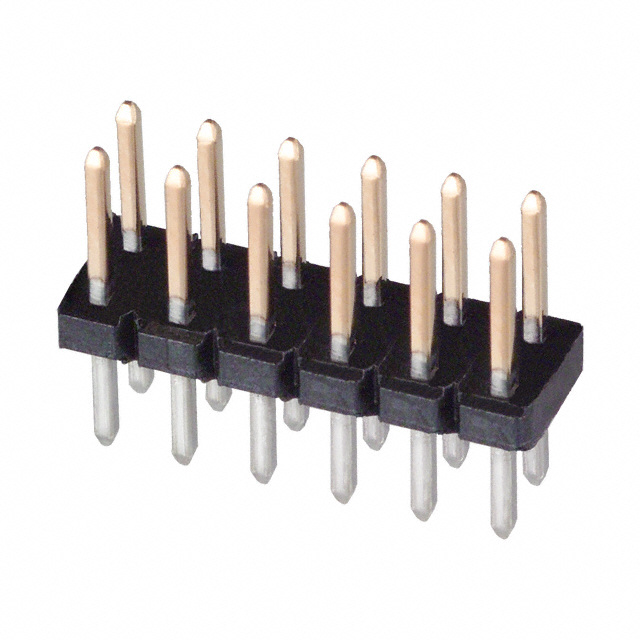

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 151212-8422-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 151212-8422-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 151212-8422-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN 12POS 2MM HEADER DUAL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 151212-8422-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 12POS 2MM HEADER DUAL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4319 pcs | Data sheet | 1512-RB Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | 1512 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.329" (8.36mm) |
| Other Names | 00076308787455 1512128422RB 3M1412 5111166048 51111660485 70200300831 80000903239 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.060" (1.52mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 12 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.152" (3.86mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
