150250-5122-RB

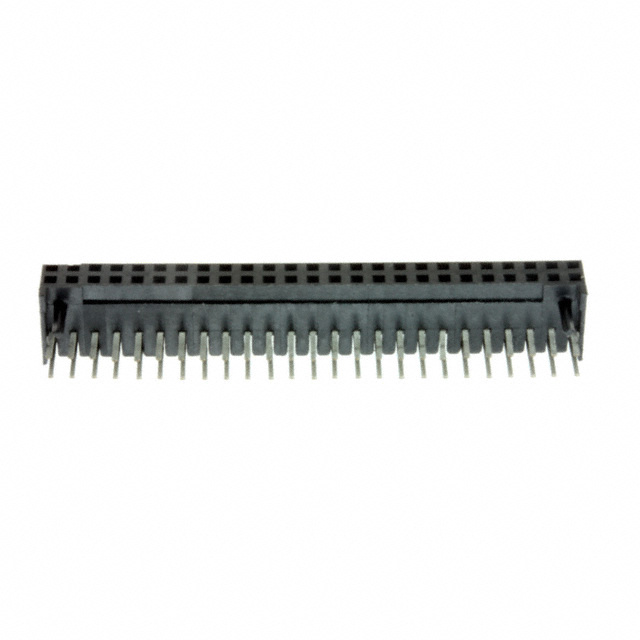

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 150250-5122-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 150250-5122-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 150250-5122-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN 50POS 2MM SOCKET R/A PC MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 150250-5122-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 50POS 2MM SOCKET R/A PC MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4070 pcs | Data sheet | 1502 Series Datasheet1502 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | 1502 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tray |
| Other Names | 05111165696 1502505122RB 3M5344 5111165696 51111656969 80000900920 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.217" (5.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 50 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
