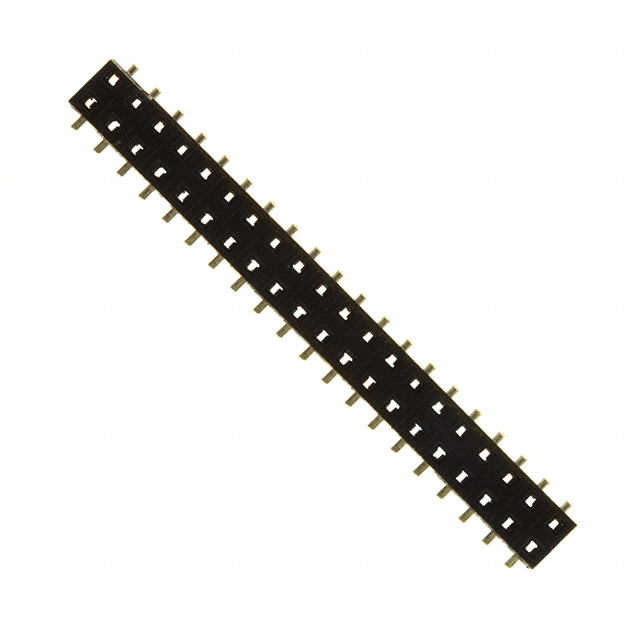

150240-2000-RB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 150240-2000-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 150240-2000-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 150240-2000-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN 40POS 2MM SOCKET STR PC SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 84 pcs | 168 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.93 | $1.621 | $1.544 | $1.313 | $1.12 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 150240-2000-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 40POS 2MM SOCKET STR PC SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28318 pcs | Data sheet | 1502 Series Datasheet1502 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | 1502 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tray |
| Other Names | 00076308788803 05111165949 1502402000RB 3M5330 5111165949 51111659496 7010385445 70200302183 80-0009-0230-6 80000902306 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.183" (4.65mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
