150232-2020-RB

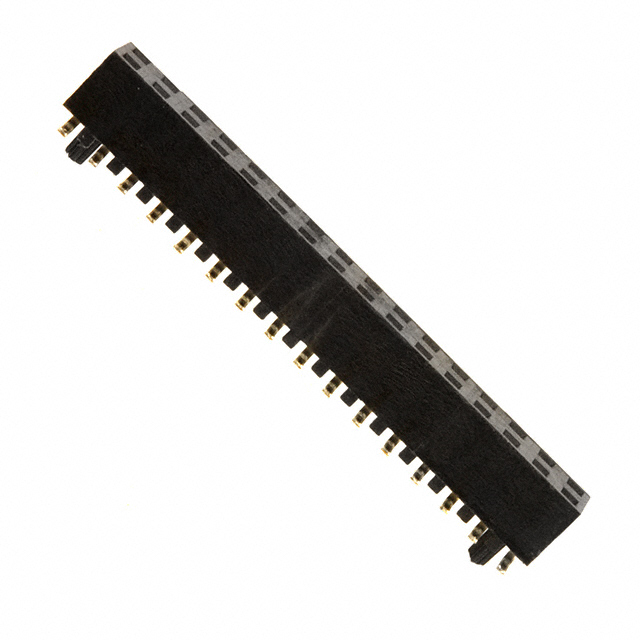

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 150232-2020-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 150232-2020-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 150232-2020-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN 32POS 2MM SOCKET STR PC SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.421 | $1.363 | $1.136 | $0.965 | $0.823 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 150232-2020-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 32POS 2MM SOCKET STR PC SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40165 pcs | Data sheet | 1502 Series Datasheet1502 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | 1502 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tray |
| Other Names | 00076308788872 05111166081 1502322020RB 3M5324 7010385448 70200302258 80000903551 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 32 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.183" (4.65mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 32 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
