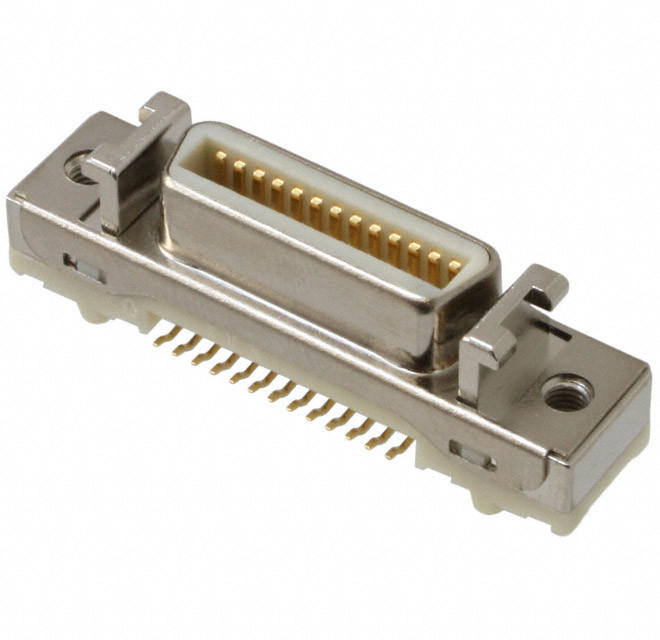

10226-2200PE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10226-2200PE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10226-2200PE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10226-2200PE |
|---|---|
| Manufacturer | 3M |
| Description | CONN MINI-D 26POS VERT RECPT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.92 | $3.748 | $3.407 | $3.237 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.152 | $2.811 | $2.641 | $2.334 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10226-2200PE | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN MINI-D 26POS VERT RECPT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15235 pcs | Data sheet | Interconnect CatalogMDR Series Qualification Report102xx-22y0zE |
| Category | Connectors, Interconnects | Type | - |
| Termination | Solder | Series | 102, Mini D Ribbon (MDR) |
| Other Names | 102262200PE 4547452508044 54745250804 7100002630 JE150343711 |
Number of Rows | 2 |
| Number of Positions | 26 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | Insert, Threaded (M2.6); Latchblocks |
| Features | Board Guide, Shielded | Detailed Description | 26 Position Receptacle Connector Surface Mount Solder |
| Contact Finish Thickness | 20.0µin (0.51µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
