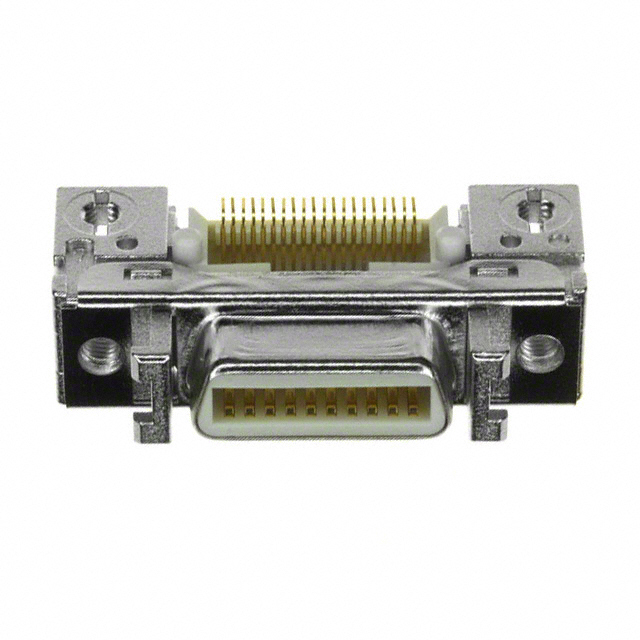

10220-1S10PE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10220-1S10PE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10220-1S10PE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10220-1S10PE |
|---|---|
| Manufacturer | 3M |
| Description | CONN MDR RCPT 20POS R/A SMD 20AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.664 | $3.506 | $3.187 | $3.028 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $2.948 | $2.63 | $2.47 | $2.183 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10220-1S10PE | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN MDR RCPT 20POS R/A SMD 20AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16247 pcs | Data sheet | Interconnect CatalogMDR Series Qualification Report102xx-1S10P(L,E) Series |
| Category | Connectors, Interconnects | Type | - |
| Termination | Solder | Series | 102, Mini D Ribbon (MDR) |
| Other Names | 0 00 51111 73194 9 0 51111 73193 2 102201S10PE 3M6470 5111173193 51111731932 7000007584 JE150320248 |
Number of Rows | 2 |
| Number of Positions | 20 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | Insert, Threaded (M2.5); Latchblocks |
| Features | Board Guide, Shielded | Detailed Description | 20 Position Receptacle Connector Surface Mount, Right Angle Solder |
| Contact Finish Thickness | 20.0µin (0.51µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
