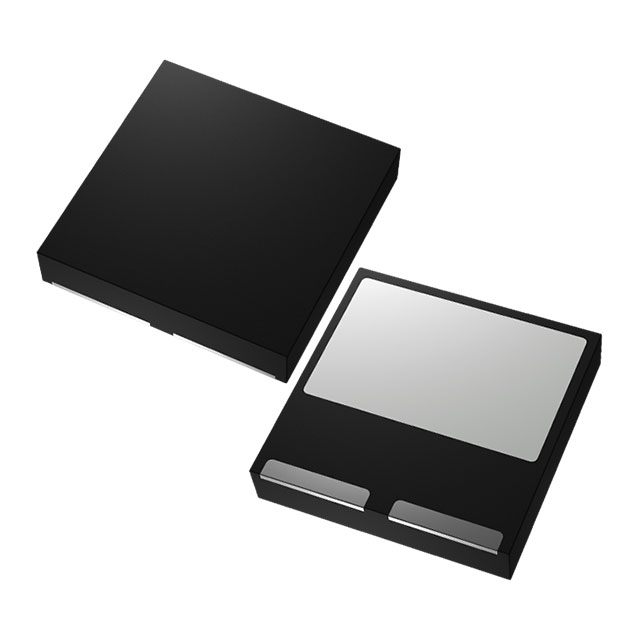

TPH3206LSB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPH3206LSB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPH3206LSB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPH3206LSB |
|---|---|
| Manufacturer | Transphorm |
| Description | MOSFET N-CH 650V 16A PQFN |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 60 pcs | ||
|---|---|---|---|---|---|
| $4.704 | $4.234 | $3.858 | |||
| 120 pcs | 300 pcs | 540 pcs | |||
| $3.481 | $3.199 | $2.917 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TPH3206LSB | Manufacturer | Transphorm |
|---|---|---|---|
| Description | MOSFET N-CH 650V 16A PQFN | Lead Free Status / RoHS Status | |
| Quantity Available | 11349 pcs | Data sheet | TPH3206L Series |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.6V @ 500µA |
| Vgs (Max) | ±18V | Technology | GaNFET (Gallium Nitride) |
| Supplier Device Package | PQFN (8x8) | Series | - |
| Rds On (Max) @ Id, Vgs | 180 mOhm @ 10A, 8V | Power Dissipation (Max) | 81W (Tc) |
| Packaging | Tube | Package / Case | 3-PowerDFN |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Input Capacitance (Ciss) (Max) @ Vds | 720pF @ 480V |
| Gate Charge (Qg) (Max) @ Vgs | 6.2nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 8V |
| Drain to Source Voltage (Vdss) | 650V | Detailed Description | N-Channel 650V 16A (Tc) 81W (Tc) Surface Mount PQFN (8x8) |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
