TPH3205WSB

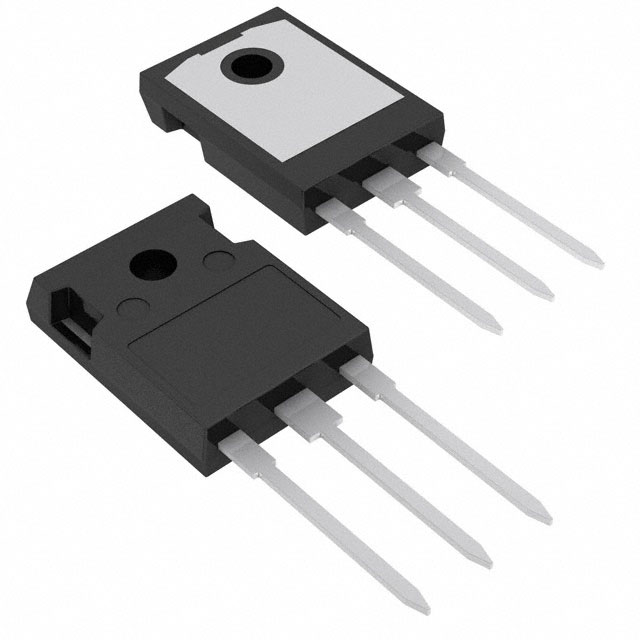

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPH3205WSB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPH3205WSB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPH3205WSB |
|---|---|
| Manufacturer | Transphorm |
| Description | MOSFET N-CH 650V 36A TO247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 180 pcs | |
|---|---|---|---|---|---|
| $9.387 | $8.683 | $7.979 | $7.415 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TPH3205WSB | Manufacturer | Transphorm |
|---|---|---|---|
| Description | MOSFET N-CH 650V 36A TO247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4247 pcs | Data sheet | TPH3205WSB |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.6V @ 700µA |
| Vgs (Max) | ±18V | Technology | GaNFET (Gallium Nitride) |
| Supplier Device Package | TO-247 | Series | - |
| Rds On (Max) @ Id, Vgs | 60 mOhm @ 22A, 8V | Power Dissipation (Max) | 125W (Tc) |
| Packaging | Tube | Package / Case | TO-247-3 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2200pF @ 400V | Gate Charge (Qg) (Max) @ Vgs | 42nC @ 8V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 8V | Drain to Source Voltage (Vdss) | 650V |
| Detailed Description | N-Channel 650V 36A (Tc) 125W (Tc) Through Hole TO-247 | Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
