TPH3202LD

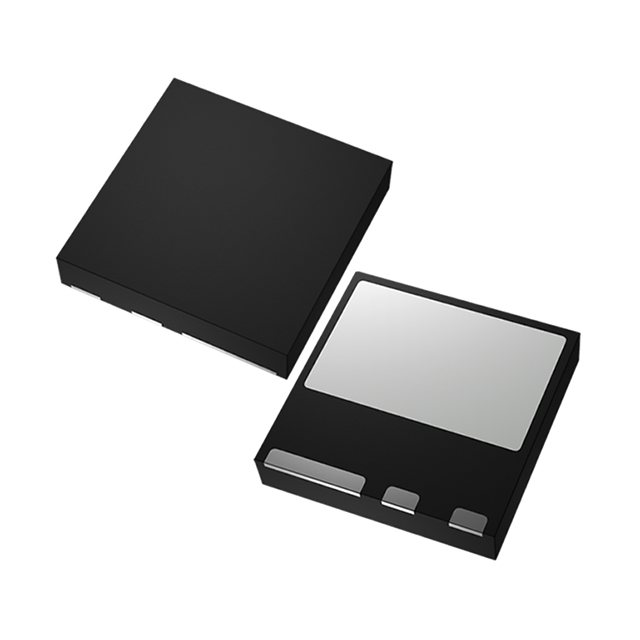

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPH3202LD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPH3202LD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPH3202LD |
|---|---|
| Manufacturer | Transphorm |
| Description | MOSFET N-CH 600V 9A PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $4.554 | $4.099 | $3.735 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TPH3202LD | Manufacturer | Transphorm |
|---|---|---|---|
| Description | MOSFET N-CH 600V 9A PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8678 pcs | Data sheet | TPH3202L |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±18V | Technology | GaNFET (Gallium Nitride) |
| Supplier Device Package | PQFN (8x8) | Series | - |
| Rds On (Max) @ Id, Vgs | 350 mOhm @ 5.5A, 8V | Power Dissipation (Max) | 65W (Tc) |
| Packaging | Tube | Package / Case | 4-PowerDFN |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 760pF @ 480V | Gate Charge (Qg) (Max) @ Vgs | 9.3nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 8V | Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 9A (Tc) 65W (Tc) Surface Mount PQFN (8x8) | Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
