Home > Products > Inductors, Coils, Chokes > Fixed Inductors > VLS3012CX-100M-1

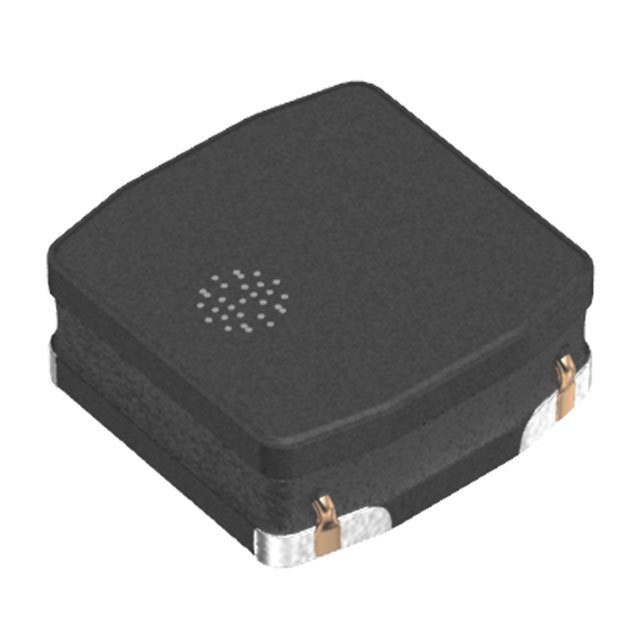

VLS3012CX-100M-1

VLS3012CX-100M-1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VLS3012CX-100M-1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VLS3012CX-100M-1
Manufacturer	TDK Corporation
Description	INDUCTORS FOR POWER CIRCUITS, WO
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 309534 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.153	$0.137	$0.094	$0.081	$0.062

Product parameter
Data sheet

Product parameter

Part Number	VLS3012CX-100M-1	Manufacturer	TDK Corporation
Description	INDUCTORS FOR POWER CIRCUITS, WO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	309534 pcs	Data sheet	VLS3012CX-1 Type
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	3012
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)	Shielding	Shielded
Series	VLS-CX-1	Ratings	-
Q @ Freq	-	Packaging	Original-Reel®
Package / Case	Nonstandard	Other Names	445-175180-6
Operating Temperature	-40°C ~ 105°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	1MHz	Inductance	10µH
Height - Seated (Max)	0.047" (1.20mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	10µH Shielded Wirewound Inductor 1.25A 324 mOhm Max Nonstandard
DC Resistance (DCR)	324 mOhm Max	Current Rating	1.25A
Current - Saturation	1A
