Home > Products > Capacitors > Ceramic Capacitors > CGA8L1X7R3A472M160KA

CGA8L1X7R3A472M160KA

CGA8L1X7R3A472M160KA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CGA8L1X7R3A472M160KA with confidence from Components-World.HK, 1 Year Warranty

Dowload CGA8L1X7R3A472M160KA Details in PDF

Request a Quote

Part Number	CGA8L1X7R3A472M160KA
Manufacturer	TDK Corporation
Description	CAP CER 4700PF 1KV X7R 1812
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 177786 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.108

Product parameter
Data sheet

Product parameter

Part Number	CGA8L1X7R3A472M160KA	Manufacturer	TDK Corporation
Description	CAP CER 4700PF 1KV X7R 1812	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	177786 pcs	Data sheet	CGA Series, Automotive High Voltage CGA Series, Automotive High Voltage Spec Sheet CGA8L1X7R3A472M160KA Character Sheet
Category	Capacitors	Voltage - Rated	1000V (1kV)
Tolerance	±20%	Thickness (Max)	0.071" (1.80mm)
Temperature Coefficient	X7R	Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Series	CGA	Ratings	AEC-Q200
Packaging	Tape & Reel (TR)	Package / Case	1812 (4532 Metric)
Other Names	445-13109-2 CGA8L1X7R3A472MT0Y0N	Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount, MLCC	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	40 Weeks	Lead Style	-
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	-	Features	-
Failure Rate	-	Detailed Description	4700pF ±20% 1000V (1kV) Ceramic Capacitor X7R 1812 (4532 Metric)
Capacitance	4700pF	Applications	Automotive

Related products
Related news

Related products

CGA8L2C0G1H683J160KA Image

Part#:~~CGA8L2C0G1H683J160KA~~
Manufacturers:~~TDK Corporation~~
Description:~~CAP CER 0.068UF 50V C0G 1812~~
In Stock:~~111345~~

~~$0.189/pcs~~RFQ

CGA7M1C0G3F820K200KA Image

Part#:~~CGA7M1C0G3F820K200KA~~
Manufacturers:~~TDK Corporation~~
Description:~~CAP CER 82PF 3KV C0G 1808~~
In Stock:~~197217~~

~~$0.112/pcs~~RFQ

CGA8K1X7R3D222K130KA Image

Part#:~~CGA8K1X7R3D222K130KA~~
Manufacturers:~~TDK Corporation~~
Description:~~CAP CER 2200PF 2KV X7R 1812~~
In Stock:~~156815~~

~~$0.144/pcs~~RFQ

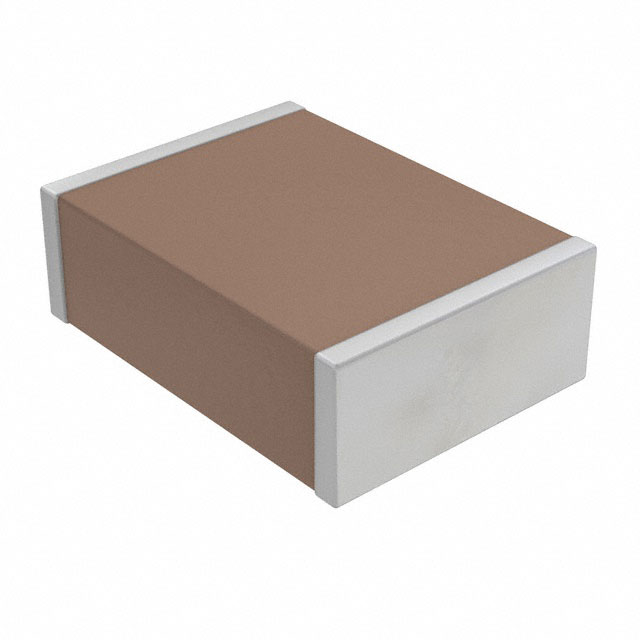

CGA8L1X7S3A103M160KA Image
