Home > Products > Switches > Magnetic, Reed Switches > PR560253001

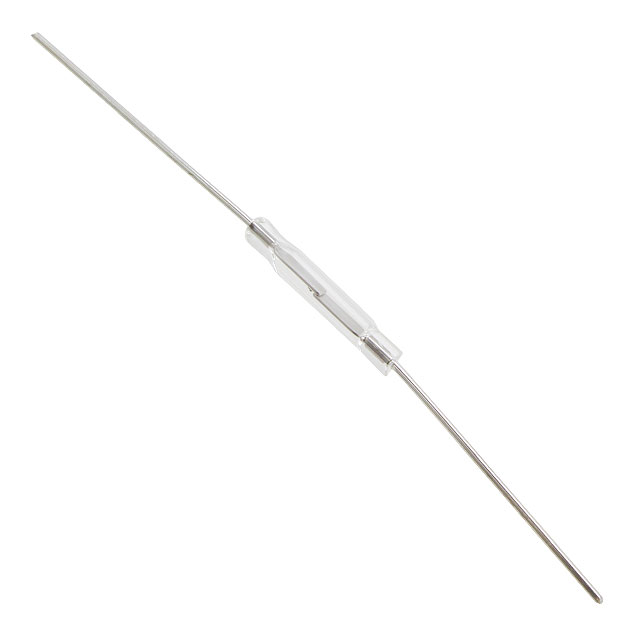

PR560253001

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PR560253001 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PR560253001
Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 1A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 61628 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.309

Product parameter

Product parameter

Part Number	PR560253001	Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 1A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61628 pcs	Data sheet
Category	Switches	Voltage - Switching DC	250V
Voltage - Switching AC	250V	Type	Glass Body
Termination Style	Axial	Size - Body	0.091" Dia x 0.559" L (2.30mm x 14.20mm)
Series	PR560	Release Time	0.1ms
Release Range	6 ~ 21AT	Power - Rated	10VA
Packaging	Bulk	Other Names	374-1337 4500532530
Operating Temperature	-40°C ~ 125°C	Operate Time	0.6ms
Operate Range	25 ~ 30AT	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Length - Overall	2.126" (54.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	-	Detailed Description	Glass Body Reed Switch SPST-NO 25 ~ 30AT Operate Range 10VA 1A (AC/DC) 250V Through Hole
Current - Switching	1A (AC/DC)	Current - Carry	1.5A (AC/DC)
Circuit	SPST-NO	Capacitance	0.2pF
