PRO-OB-536

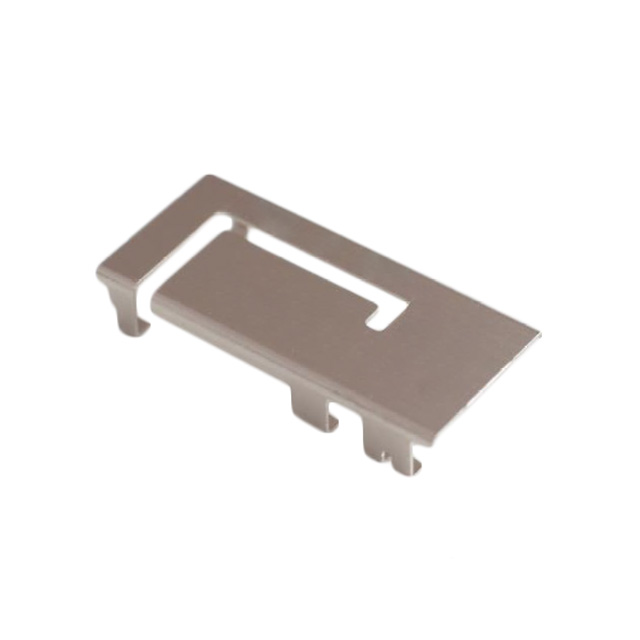

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PRO-OB-536 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PRO-OB-536 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PRO-OB-536 |
|---|---|
| Manufacturer | ProAnt |
| Description | RF ANT 2.4GHZ/5.5GHZ STAMPED MET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.144 | $0.135 | $0.128 | $0.123 | $0.119 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PRO-OB-536 | Manufacturer | ProAnt |
|---|---|---|---|
| Description | RF ANT 2.4GHZ/5.5GHZ STAMPED MET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 198113 pcs | Data sheet | 536 Datasheet |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | OnBoard™ |
| Return Loss | -8dB | Packaging | Tape & Reel (TR) |
| Other Names | 1532-1022-2 | Number of Bands | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.098" (2.50mm) |
| Gain | - | Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 2.4GHz, 5.5GHz |
| Features | - | Detailed Description | 2.4GHz, 5.5GHz Bluetooth, WLAN, Zigbee™ Stamped Metal RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz Solder Surface Mount |
| Applications | Bluetooth, WLAN, Zigbee™ | Antenna Type | Stamped Metal |
