Home > Products > Switches > Rotary Switches > TS2N

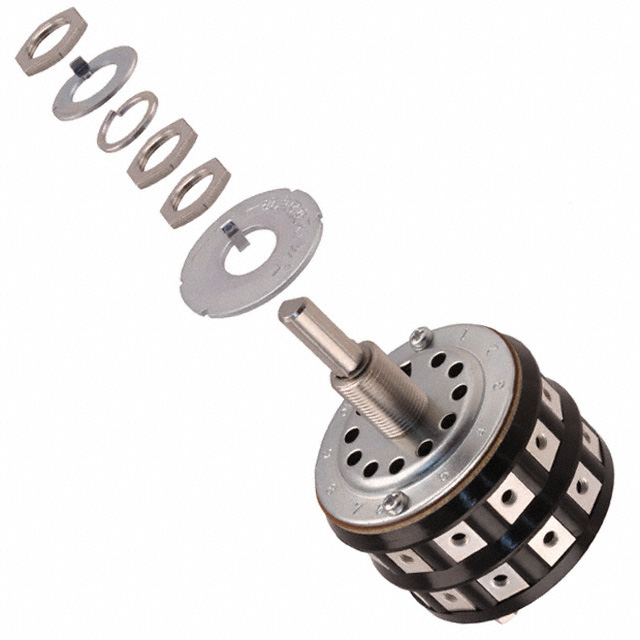

TS2N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TS2N with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TS2N
Manufacturer	NKK Switches
Description	SWITCH ROTARY 2-11POS 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3164 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$14.96	$14.319	$14.105
	$13.677	$12.182	$11.754

Product parameter
Data sheet

Product parameter

Part Number	TS2N	Manufacturer	NKK Switches
Description	SWITCH ROTARY 2-11POS 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3164 pcs	Data sheet	HS, TS, PS Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Series	TS
Panel Cutout Dimensions	Circular - 10.30mm Dia	Other Names	360-2357 TS2N-RO TS2N-RO-ND
Operating Force	28gfm	Number of Positions	2 ~ 11
Number of Poles per Deck	1	Number of Decks	2
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Adjustable	Features	-
Detailed Description	Rotary Switch 2 ~ 11 Position SP11T 6A (AC) 125VAC Panel Mount	Depth Behind Panel	34.00mm
Current Rating	6A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Phosphor Bronze	Contact Finish	-
Circuit per Deck	SP11T	Angle of Throw	30°
Actuator Type	Flatted (6mm Dia)	Actuator Length	15.60mm
