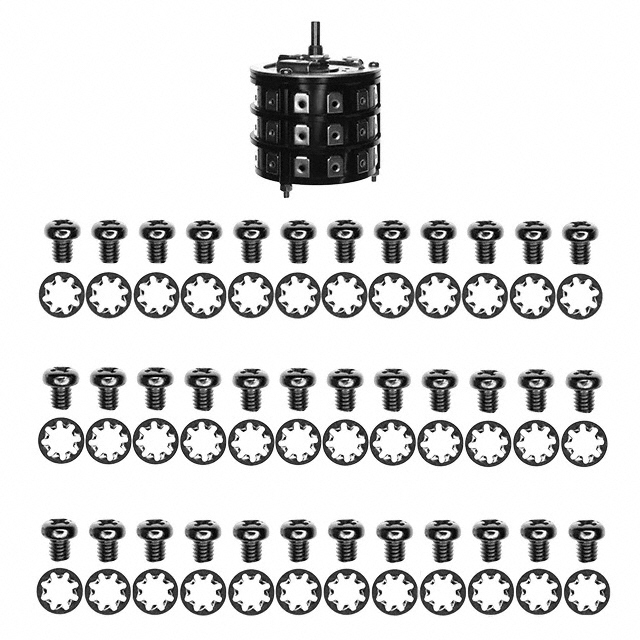

PS3N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PS3N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PS3N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PS3N |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROTARY 2-11POS 30A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $26.875 | $26.083 | $25.293 | $23.712 | $22.131 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PS3N | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROTARY 2-11POS 30A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1732 pcs | Data sheet | HS, TS, PS Series |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Screw Terminal | Series | PS |
| Panel Cutout Dimensions | Circular - 10.50mm Dia | Other Names | 360-2363 PS3N-RO PS3N-RO-ND |
| Operating Force | 43gfm | Number of Positions | 2 ~ 11 |
| Number of Poles per Deck | 1 | Number of Decks | 3 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Adjustable | Features | - |
| Detailed Description | Rotary Switch 2 ~ 11 Position SP11T 30A (AC) 125VAC Panel Mount | Depth Behind Panel | 81.50mm |
| Current Rating | 30A (AC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Silver Alloy | Contact Finish | - |
| Circuit per Deck | SP11T | Angle of Throw | 30° |
| Actuator Type | Flatted (6mm Dia) | Actuator Length | 15.00mm |
