Home > Products > Switches > Slide Switches > MS22BSW40

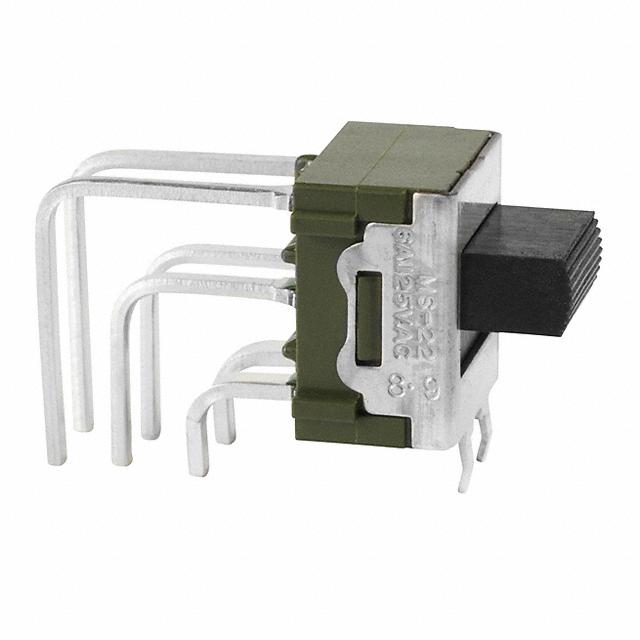

MS22BSW40

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS22BSW40 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS22BSW40
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 23798 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.177	$2.153	$2.127	$1.945
	$1.867	$1.764	$1.556	$1.401

Product parameter
Data sheet

Product parameter

Part Number	MS22BSW40	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23798 pcs	Data sheet	MS Series Miniature Slides Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Travel	2.20mm
Switch Function	On-On	Series	MS
Packaging	Bulk	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole, Right Angle, Vertical	Current Rating	6A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Alloy
Contact Finish	Silver	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
