Home > Products > Switches > Slide Switches > AS23CH

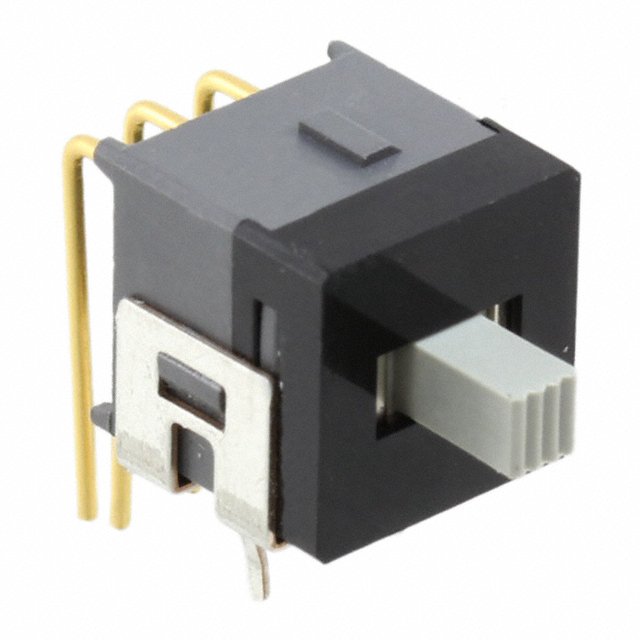

AS23CH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS23CH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AS23CH
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 27081 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.119	$2.073	$1.98	$1.75
	$1.727	$1.704	$1.405	$1.313

Product parameter
Data sheet

Product parameter

Part Number	AS23CH	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27081 pcs	Data sheet	AS Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Travel	2.50mm	Switch Function	On-Off-On
Series	AS	Packaging	Tray
Operating Temperature	-30°C ~ 85°C	Operating Force	260gf
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Slide Switch DPDT Through Hole, Right Angle
Current Rating	0.4VA (AC/DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Phosphor Bronze	Contact Finish	Gold
Circuit	DPDT	Actuator Type	Standard
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Length	3.80mm
