Home > Products > Switches > Slide Switches > AS22BP

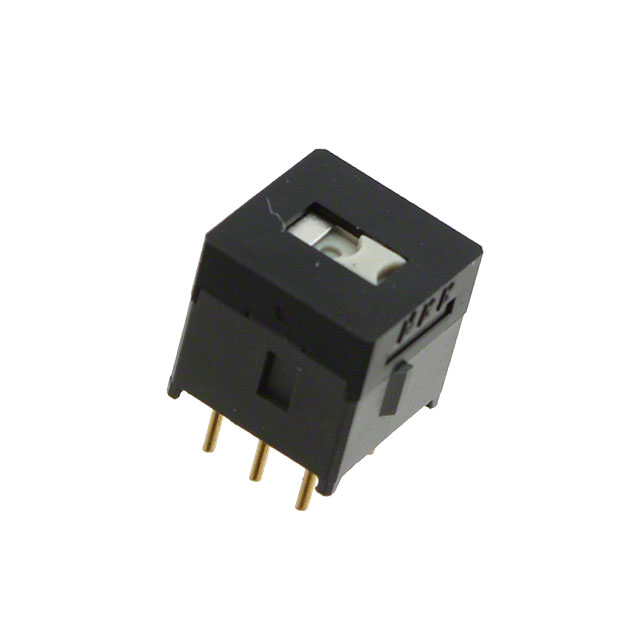

AS22BP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS22BP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AS22BP
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 28918 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.665	$1.628	$1.556	$1.375
	$1.357	$1.338	$1.103	$1.031

Product parameter
Data sheet

Product parameter

Part Number	AS22BP	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28918 pcs	Data sheet	AS Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Travel	2.50mm	Switch Function	On-On
Series	AS	Packaging	Tray
Other Names	360-2544	Operating Temperature	-30°C ~ 85°C
Operating Force	260gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole	Current Rating	0.4VA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Phosphor Bronze
Contact Finish	Gold	Circuit	DPDT
Actuator Type	Flush	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Length	Flush
