Home > Products > Switches > Slide Switches > AS22AV

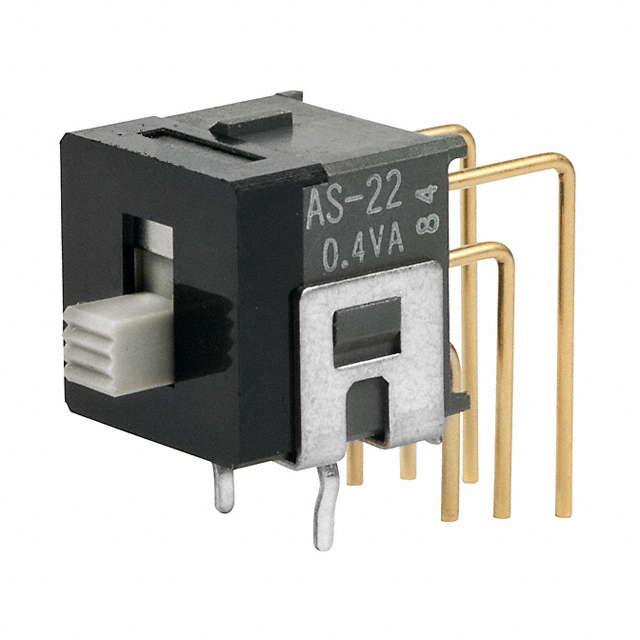

AS22AV

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS22AV with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AS22AV
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 30219 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.00	$1.957	$1.87	$1.653
	$1.631	$1.609	$1.327	$1.24

Product parameter
Data sheet

Product parameter

Part Number	AS22AV	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30219 pcs	Data sheet	AS Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Travel	2.50mm	Switch Function	On-On
Series	AS	Packaging	Tray
Other Names	360-3410 AS22AV-ND AS22AV-RO AS22AV-RO-ND	Operating Temperature	-30°C ~ 85°C
Operating Force	260gf	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole, Right Angle, Vertical	Current Rating	0.4VA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Phosphor Bronze
Contact Finish	Gold	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Length	2.50mm
