Home > Products > Discrete Semiconductor Products > Diodes - Zener - Single > JAN1N4970US

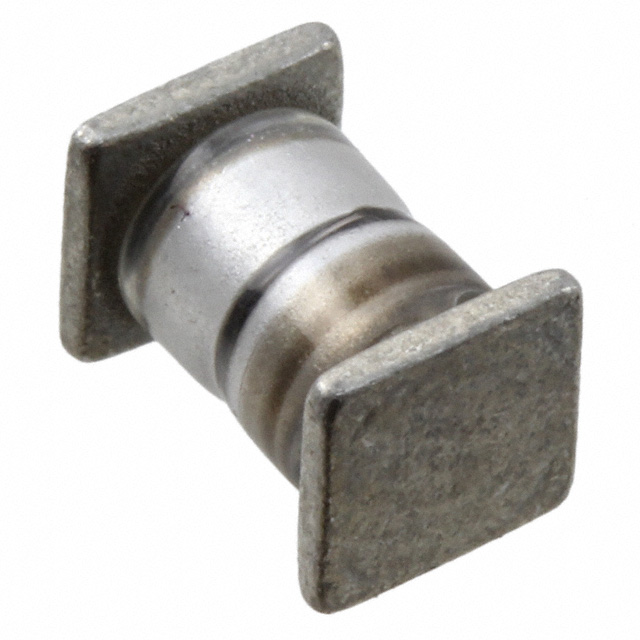

JAN1N4970US

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JAN1N4970US with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JAN1N4970US
Manufacturer	Microsemi
Description	DIODE ZENER 33V 5W D5B
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 8682 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$4.224

Product parameter
Data sheet

Product parameter

Part Number	JAN1N4970US	Manufacturer	Microsemi
Description	DIODE ZENER 33V 5W D5B	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	8682 pcs	Data sheet	1N49xxUS, 59xxUS, 66xxUS
Category	Discrete Semiconductor Products	Voltage - Zener (Nom) (Vz)	33V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 1A	Tolerance	±5%
Supplier Device Package	D-5B	Series	Military, MIL-PRF-19500/356
Power - Max	5W	Packaging	Bulk
Package / Case	E-MELF	Other Names	1086-2045 1086-2045-MIL
Operating Temperature	-65°C ~ 175°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Impedance (Max) (Zzt)	10 Ohms
Detailed Description	Zener Diode 33V 5W ±5% Surface Mount D-5B	Current - Reverse Leakage @ Vr	2µA @ 25.1V
