Home > Products > Discrete Semiconductor Products > Diodes - Zener - Single > JAN1N4474CUS

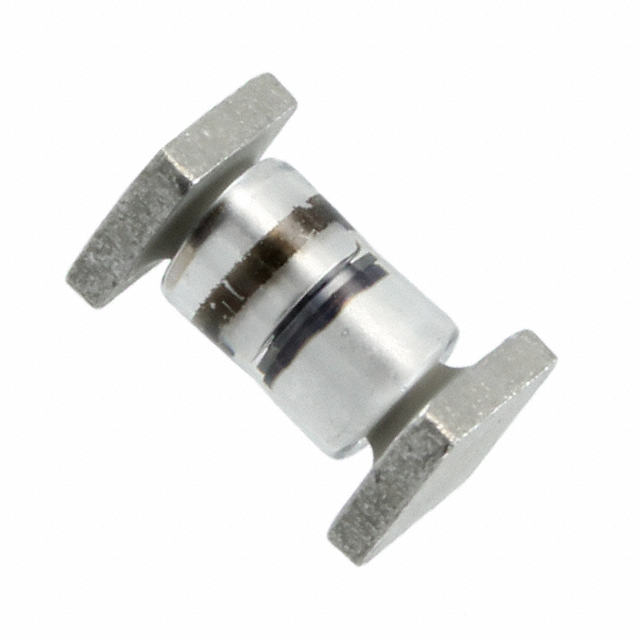

JAN1N4474CUS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JAN1N4474CUS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JAN1N4474CUS
Manufacturer	Microsemi
Description	DIODE ZENER 24V 1.5W D-5A
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 4162 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$8.699

Product parameter
Data sheet

Product parameter

Part Number	JAN1N4474CUS	Manufacturer	Microsemi
Description	DIODE ZENER 24V 1.5W D-5A	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4162 pcs	Data sheet	1N4460-96US, 1N6485-91US
Category	Discrete Semiconductor Products	Voltage - Zener (Nom) (Vz)	24V
Voltage - Forward (Vf) (Max) @ If	1V @ 200mA	Tolerance	±2%
Supplier Device Package	D-5A	Series	Military, MIL-PRF-19500/406
Power - Max	1.5W	Packaging	Bulk
Package / Case	SQ-MELF, A	Other Names	1086-17837 1086-17837-MIL
Operating Temperature	-65°C ~ 175°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Impedance (Max) (Zzt)	16 Ohms	Detailed Description	Zener Diode 24V 1.5W ±2% Surface Mount D-5A
Current - Reverse Leakage @ Vr	50nA @ 19.2V
