Home > Products > Circuit Protection > PTC Resettable Fuses > TCF250-145

TCF250-145

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCF250-145 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TCF250-145
Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 60V 145MA SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 224428 pcs
Reference Price (In US Dollars)	2500 pcs
Reference Price (In US Dollars)	$0.085

Product parameter
Data sheet

Product parameter

Part Number	TCF250-145	Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 60V 145MA SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	224428 pcs	Data sheet	TCF250-145 Spec Telecom/Networking Devices Catalog
Category	Circuit Protection	Voltage - Max	60V (250V Int)
Type	Polymeric	Time to Trip	2.5s
Thickness (Max)	0.091" (2.30mm)	Size / Dimension	0.217" L x 0.217" W (5.50mm x 5.50mm)
Series	PolySwitch®, TCF250	Resistance - Post Trip (R1) (Max)	14 Ohms
Resistance - Initial (Ri) (Min)	3 Ohms	Ratings	-
Packaging	Bulk	Package / Case	Nonstandard SMD
Other Names	F78914-000 TCF250145	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Detailed Description	Polymeric PTC Resettable Fuse 60V (250V Int) 145mA Ih Surface Mount Nonstandard SMD	Current - Trip (It)	290mA
Current - Max	3A	Current - Hold (Ih) (Max)	145mA
Approvals	-

Related products
Related news

Related products

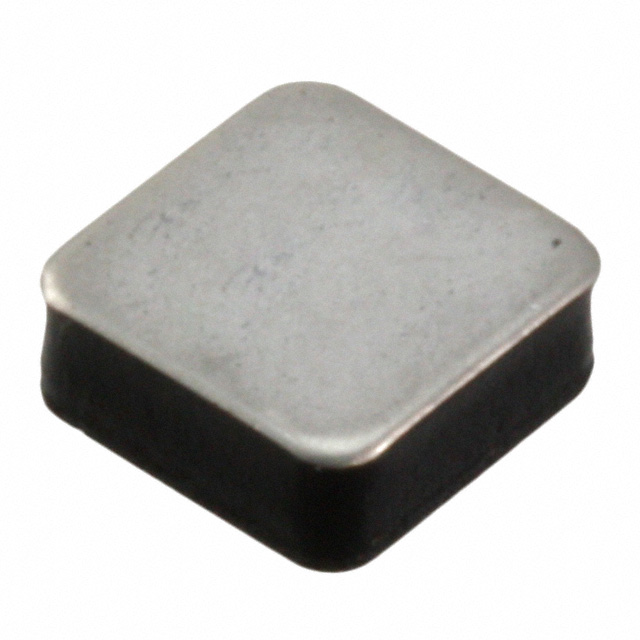

TCF250-100T-B-0.5 Image
