RHEF050-AP

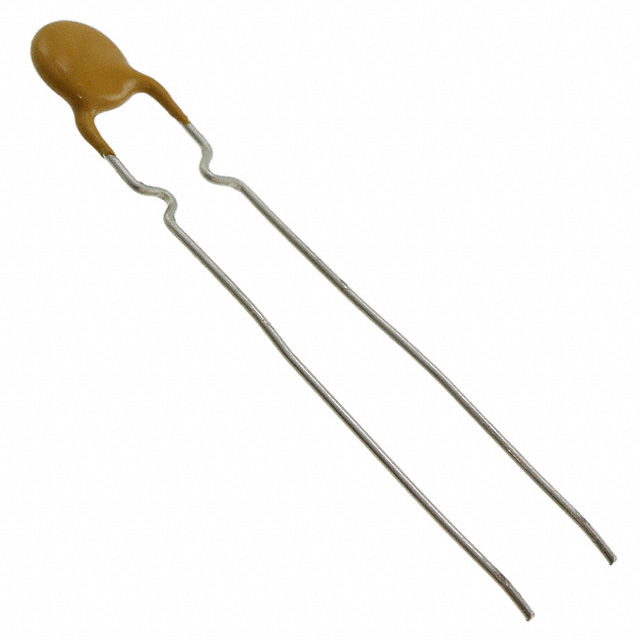

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RHEF050-AP with confidence from Components-World.HK, 1 Year Warranty
Dowload RHEF050-AP Details in PDFSee Product Specifications for product details.
Buy RHEF050-AP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RHEF050-AP |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 30V 500MA RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.233 | $0.228 | $0.22 | $0.186 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.154 | $0.14 | $0.119 | $0.105 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RHEF050-AP | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 30V 500MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 186900 pcs | Data sheet | PolySwitch, Radial-leaded CatalogRHEF050 Spec |
| Category | Circuit Protection | Voltage - Max | 30V |
| Type | Polymeric | Time to Trip | 2.5s |
| Thickness (Max) | - | Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Series | PolySwitch®, RHEF | Resistance - Post Trip (R1) (Max) | 1.1 Ohms |
| Resistance - Initial (Ri) (Min) | 480 mOhms | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Radial, Disc |
| Other Names | RHEF050-APHFCT | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Spacing | 0.199" (5.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.500" (12.70mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 30V 500mA Ih Through Hole Radial, Disc | Current - Trip (It) | 920mA |
| Current - Max | 40A | Current - Hold (Ih) (Max) | 500mA |
| Approvals | CSA, TUV, UL |
