Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > SE20PBHM3/84A

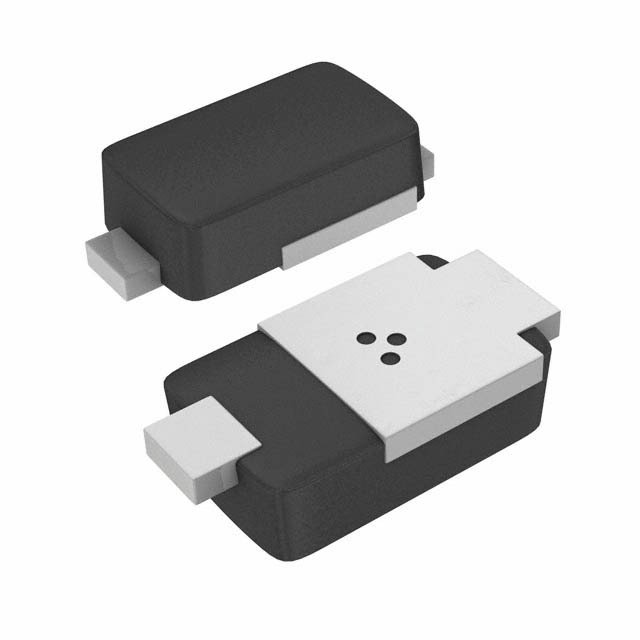

SE20PBHM3/84A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SE20PBHM3/84A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SE20PBHM3/84A
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 100V 1.6A DO220AA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 663285 pcs
Reference Price (In US Dollars)	12000 pcs
Reference Price (In US Dollars)	$0.035

Product parameter
Data sheet

Product parameter

Part Number	SE20PBHM3/84A	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 100V 1.6A DO220AA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	663285 pcs	Data sheet	SE20PB thru SE20PJ
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.05V @ 2A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	DO-220AA (SMP)
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	Automotive, AEC-Q101
Reverse Recovery Time (trr)	1.2µs	Packaging	Tape & Reel (TR)
Package / Case	DO-220AA	Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Detailed Description	Diode Standard 100V 1.6A (DC) Surface Mount DO-220AA (SMP)	Current - Reverse Leakage @ Vr	5µA @ 100V
Current - Average Rectified (Io)	1.6A (DC)	Capacitance @ Vr, F	13pF @ 4V, 1MHz

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
