Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > ES3D-E3/57T

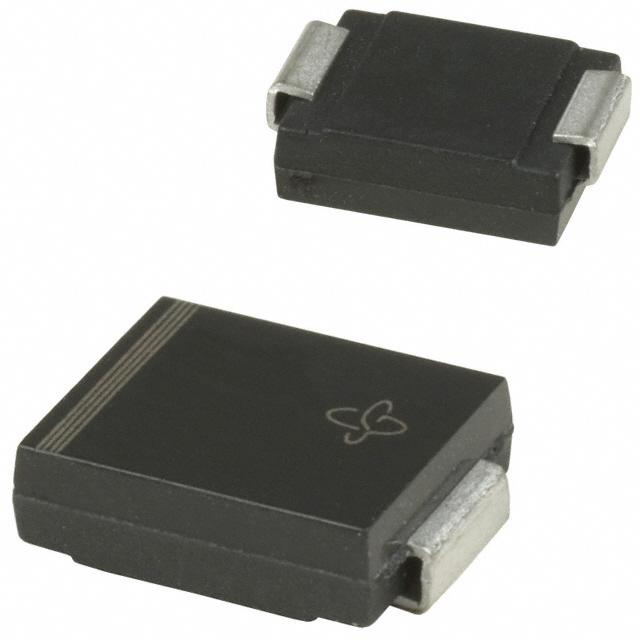

ES3D-E3/57T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ES3D-E3/57T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ES3D-E3/57T
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 200V 3A DO214AB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 169169 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$0.209	$0.18	$0.134

Product parameter
Data sheet

Product parameter

Part Number	ES3D-E3/57T	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 200V 3A DO214AB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	169169 pcs	Data sheet	ES3A - ES3D
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	900mV @ 3A
Voltage - DC Reverse (Vr) (Max)	200V	Supplier Device Package	DO-214AB (SMC)
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	30ns	Packaging	Cut Tape (CT)
Package / Case	DO-214AB, SMC	Other Names	ES3D-E3/57TGICT
Operating Temperature - Junction	-55°C ~ 150°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	53 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Detailed Description	Diode Standard 200V 3A Surface Mount DO-214AB (SMC)	Current - Reverse Leakage @ Vr	10µA @ 200V
Current - Average Rectified (Io)	3A	Capacitance @ Vr, F	45pF @ 4V, 1MHz
Base Part Number	ES3D
