Home > Products > Integrated Circuits (ICs) > Interface - Analog Switches, Multiplexers, Demulti > DG636EN-T1-E4

DG636EN-T1-E4

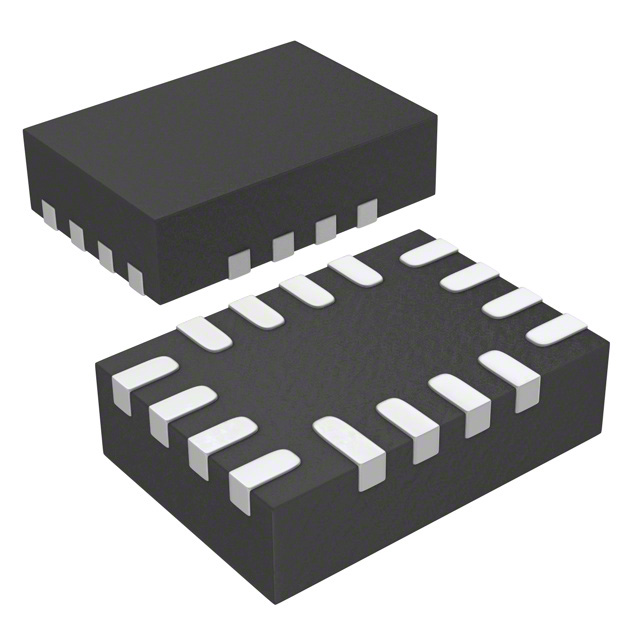

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG636EN-T1-E4 with confidence from Components-World.HK, 1 Year Warranty

Dowload DG636EN-T1-E4 Details in PDF

Request a Quote

Part Number	DG636EN-T1-E4
Manufacturer	Electro-Films (EFI) / Vishay
Description	IC SWITCH DUAL SPDT 16-MINIQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5512 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	DG636EN-T1-E4	Manufacturer	Electro-Films (EFI) / Vishay
Description	IC SWITCH DUAL SPDT 16-MINIQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5512 pcs	Data sheet	DG636
Category	Integrated Circuits (ICs)	Voltage - Supply, Single (V+)	2.7 V ~ 12 V
Voltage - Supply, Dual (V±)	±2.7 V ~ 5 V	Switch Time (Ton, Toff) (Max)	60ns, 52ns
Switch Circuit	SPDT	Supplier Device Package	16-miniQFN (1.8x2.6)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	16-WFQFN	Other Names	DG636EN-T1-E4TR DG636ENT1E4
Operating Temperature	-40°C ~ 125°C (TA)	On-State Resistance (Max)	115 Ohm
Number of Circuits	2	Multiplexer/Demultiplexer Circuit	2:1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	2 Circuit IC Switch 2:1 115 Ohm 16-miniQFN (1.8x2.6)	Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-88dB @ 10MHz	Charge Injection	0.1pC
Channel-to-Channel Matching (ΔRon)	1 Ohm	Channel Capacitance (CS(off), CD(off))	2.1pF, 4.2pF
Base Part Number	DG636	-3db Bandwidth	610MHz
