Home > Products > Integrated Circuits (ICs) > Interface - Analog Switches, Multiplexers, Demulti > DG3157BDN-T1-E4

DG3157BDN-T1-E4

DG3157BDN-T1-E4

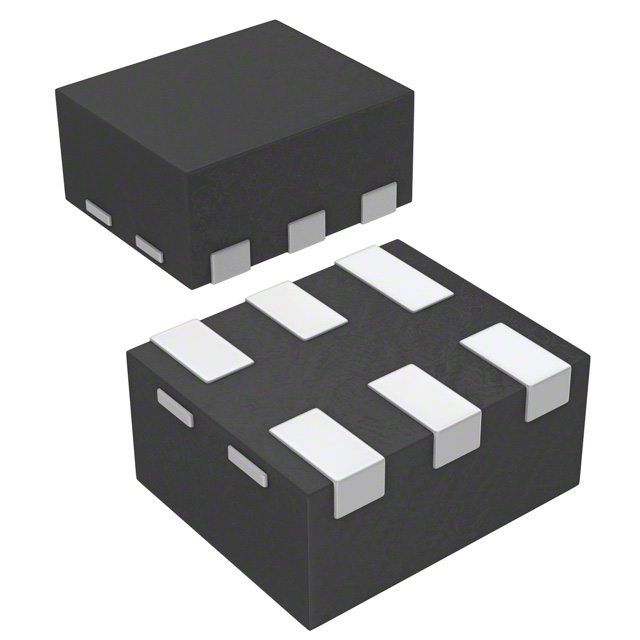

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG3157BDN-T1-E4 with confidence from Components-World.HK, 1 Year Warranty

Dowload DG3157BDN-T1-E4 Details in PDF

Request a Quote

Part Number	DG3157BDN-T1-E4
Manufacturer	Electro-Films (EFI) / Vishay
Description	IC SWITCH SPDT 300MHZ 6-MINIQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5287 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	DG3157BDN-T1-E4	Manufacturer	Electro-Films (EFI) / Vishay
Description	IC SWITCH SPDT 300MHZ 6-MINIQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5287 pcs	Data sheet	DG3157A,B
Category	Integrated Circuits (ICs)	Voltage - Supply, Single (V+)	1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±)	-	Switch Time (Ton, Toff) (Max)	25ns, 21ns
Switch Circuit	SPDT	Supplier Device Package	6-miniQFN
Series	-	Packaging	Tape & Reel (TR)
Package / Case	6-UFDFN	Other Names	DG3157BDN-T1-E4TR DG3157BDNT1E4
Operating Temperature	-40°C ~ 85°C (TA)	On-State Resistance (Max)	15 Ohm
Number of Circuits	1	Multiplexer/Demultiplexer Circuit	2:1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	1 Circuit IC Switch 2:1 15 Ohm 6-miniQFN	Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-64dB @ 10MHz	Charge Injection	7pC
Channel-to-Channel Matching (ΔRon)	800 mOhm	Channel Capacitance (CS(off), CD(off))	7pF
Base Part Number	DG3157	-3db Bandwidth	300MHz
