800CSP1B6M7QE

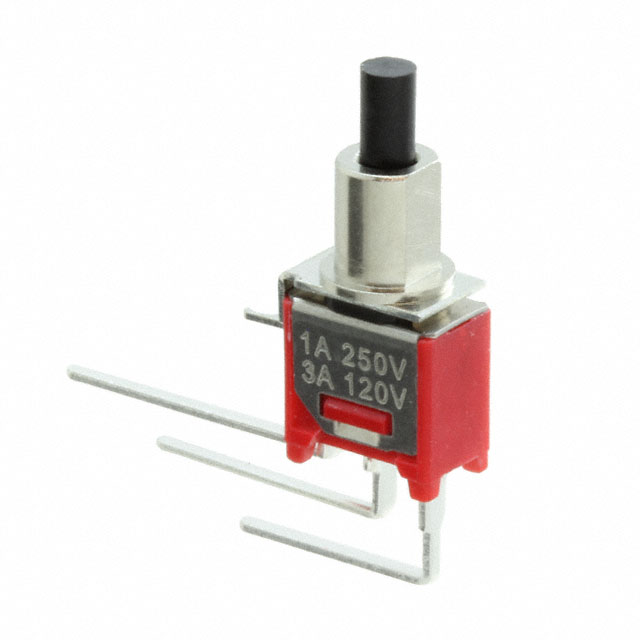

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 800CSP1B6M7QE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 800CSP1B6M7QE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 800CSP1B6M7QE |
|---|---|
| Manufacturer | E-Switch |
| Description | SUB-MINIATURE PUSHBUTTON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.553 | $1.449 | $1.38 | $1.311 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.276 | $1.242 | $1.173 | $1.104 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 800CSP1B6M7QE | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SUB-MINIATURE PUSHBUTTON | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27812 pcs | Data sheet | 800C Series Datasheet800CSP1B6M7QE Drawing |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 120V | Type | Standard |
| Termination Style | PC Pin | Switch Function | On-On |
| Series | 800C | Panel Cutout Dimensions | - |
| Packaging | Bulk | Other Names | EG5542 |
| Operating Temperature | -30°C ~ 85°C | Mounting Type | Through Hole, Right Angle, Vertical |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 6,000 Cycles |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Features | Epoxy Sealed Terminals |
| Electrical Life | 6,000 Cycles | Detailed Description | Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical |
| Current Rating | 3A (AC/DC) | Color - Actuator/Cap | Black |
| Circuit | SPDT | Actuator Type | Round, Plunger |
