2N5109
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N5109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N5109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N5109 |
|---|---|
| Manufacturer | Central Semiconductor |

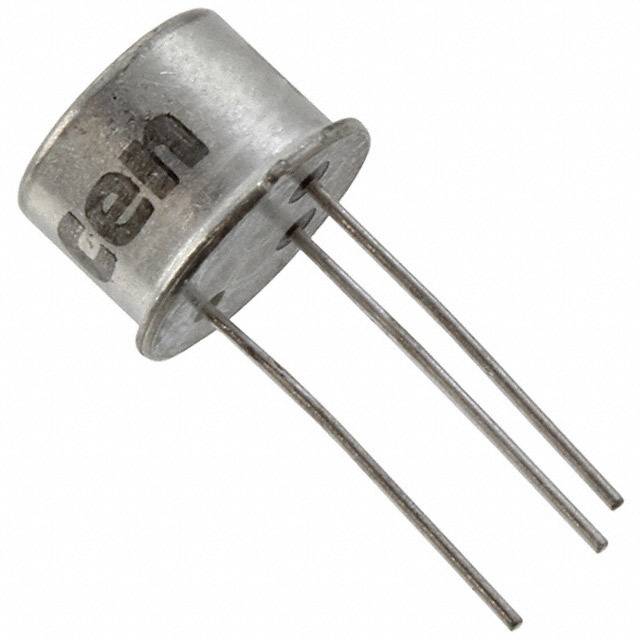

| Description | TRANS RF NPN 20V 400MA TO-39 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.12 | $0.999 | $0.899 | $0.819 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.739 | $0.663 | $0.559 | $0.533 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N5109 | Manufacturer | Central Semiconductor |
|---|---|---|---|
| Description | TRANS RF NPN 20V 400MA TO-39 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70077 pcs | Data sheet | 2N5109 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 20V |
| Transistor Type | NPN | Supplier Device Package | TO-39 |
| Series | - | Power - Max | 1W |
| Packaging | Bulk | Package / Case | TO-205AD, TO-39-3 Metal Can |
| Other Names | 2N5109 LEAD FREE 2N5109 PBFREE 2N5109CS |
Operating Temperature | -65°C ~ 200°C (TJ) |
| Noise Figure (dB Typ @ f) | 3dB @ 200MHz | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gain | - |
| Frequency - Transition | 1.2GHz | Detailed Description | RF Transistor NPN 20V 400mA 1.2GHz 1W Through Hole TO-39 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 50mA, 15V | Current - Collector (Ic) (Max) | 400mA |
