MF-NSML550-2

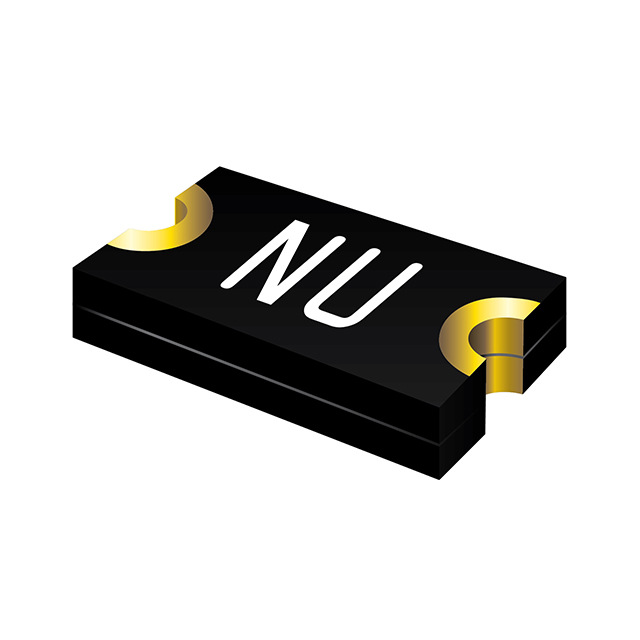

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MF-NSML550-2 with confidence from Components-World.HK, 1 Year Warranty
Dowload MF-NSML550-2 Details in PDFSee Product Specifications for product details.
Buy MF-NSML550-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MF-NSML550-2 |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | PTC RESET FUSE 6V 5.5A 1206 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.132 | $0.127 | $0.122 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MF-NSML550-2 | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | PTC RESET FUSE 6V 5.5A 1206 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 195918 pcs | Data sheet | MF-NSML Series |
| Category | Circuit Protection | Voltage - Max | 6V |
| Type | Polymeric | Time to Trip | 2s |
| Thickness (Max) | 0.047" (1.20mm) | Size / Dimension | 0.128" L x 0.063" W (3.25mm x 1.60mm) |
| Series | Multifuse®, MF-NSML | Resistance - Post Trip (R1) (Max) | 11 mOhms |
| Resistance - Initial (Ri) (Min) | 1 mOhms | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 1206 (3216 Metric), Concave |
| Other Names | MF-NSML550-2TR | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Detailed Description | Polymeric PTC Resettable Fuse 6V 5.5A Ih Surface Mount 1206 (3216 Metric), Concave | Current - Trip (It) | 11A |
| Current - Max | 50A | Current - Hold (Ih) (Max) | 5.5A |
| Approvals | cURus, TUV |
