Home > Products > Fans, Thermal Management > Thermal - Pads, Sheets > Q3-0.005-00-114

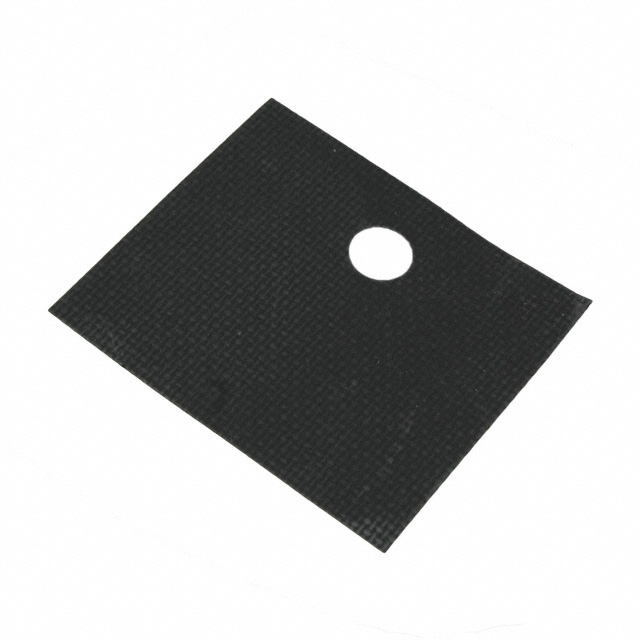

Q3-0.005-00-114

Q3-0.005-00-114

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy Q3-0.005-00-114 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	Q3-0.005-00-114
Manufacturer	Bergquist
Description	THERM PAD 24MMX21.01MM BLACK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1037168 pcs
Reference Price (In US Dollars)	5300 pcs
Reference Price (In US Dollars)	$0.023

Product parameter
Data sheet

Product parameter

Part Number	Q3-0.005-00-114	Manufacturer	Bergquist
Description	THERM PAD 24MMX21.01MM BLACK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1037168 pcs	Data sheet	Q-Pad 3 Sil-Pad Selection Guide*
Category	Fans, Thermal Management	Usage	TO-218, TO-220, TO-247
Type	Pad, Sheet	Thickness	0.0050" (0.127mm)
Thermal Resistivity	0.35°C/W	Thermal Conductivity	2.0 W/m-K
Shape	Rectangular	Series	Q-Pad® 3
Outline	24.00mm x 21.01mm	Other Names	BER129 Q3-114
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	Elastomer
Manufacturer Standard Lead Time	2 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Thermal Pad Black 24.00mm x 21.01mm Rectangular	Color	Black
Backing, Carrier	Fiberglass	Adhesive	-
