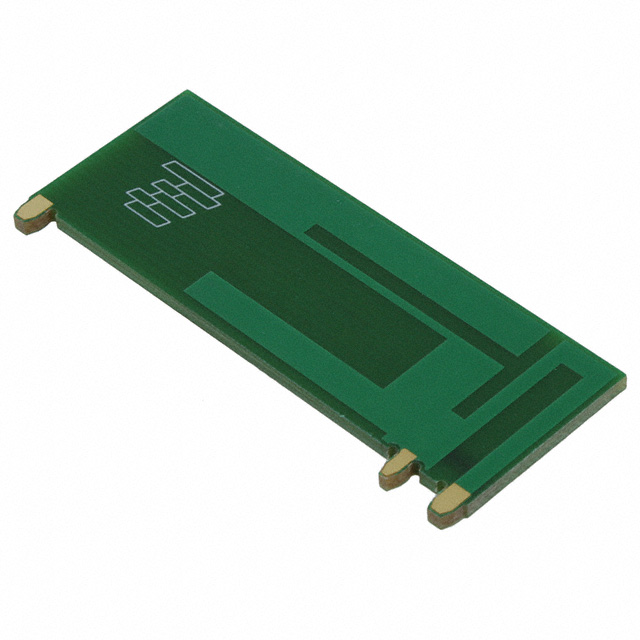

1513317-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513317-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513317-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513317-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 850MHZ/900MHZ PCB TRACE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.916 | $1.709 | $1.538 | $1.402 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.265 | $1.135 | $0.957 | $0.909 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513317-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 850MHZ/900MHZ PCB TRACE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41528 pcs | Data sheet | 1513317 Drawing1513317-1 Datasheet |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Power - Max | 10W |
| Packaging | Bulk | Other Names | A107418 |
| Number of Bands | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.798" (20.27mm) | Gain | 3dBi |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | Features | - |
| Detailed Description | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz CDMA, GSM, LTE, UMTS, ZigBee™ PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 3dBi Solder Through Hole | Applications | CDMA, GSM, LTE, UMTS, ZigBee™ |
| Antenna Type | PCB Trace |
