ADG798HFRZ

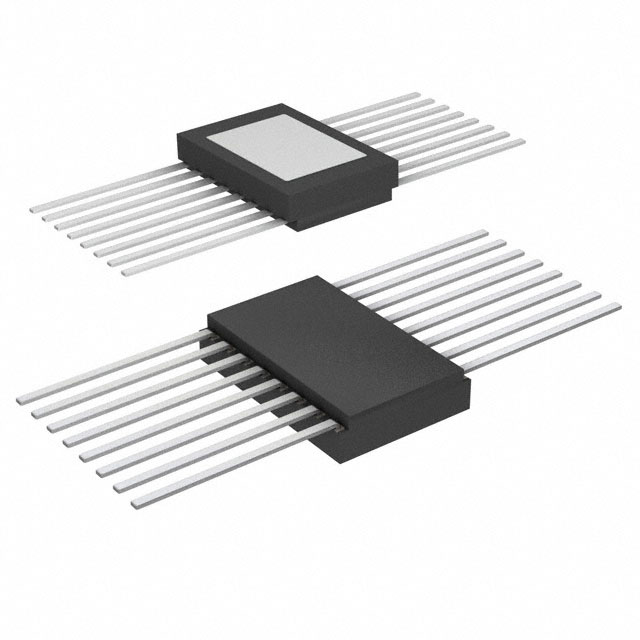

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADG798HFRZ with confidence from Components-World.HK, 1 Year Warranty
Dowload ADG798HFRZ Details in PDFSee Product Specifications for product details.
Buy ADG798HFRZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADG798HFRZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC MUX/DEMUX 8:1 16FLATPACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $50.321 | $47.941 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADG798HFRZ | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC MUX/DEMUX 8:1 16FLATPACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 812 pcs | Data sheet | ADG798 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 3 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | ±2.5V | Switch Time (Ton, Toff) (Max) | 30ns, 20ns |
| Switch Circuit | - | Supplier Device Package | 16-CFlatPack |
| Series | - | Packaging | Tube |
| Package / Case | 16-CFlatPack | Operating Temperature | -55°C ~ 210°C (TA) |
| On-State Resistance (Max) | 10 Ohm | Number of Circuits | 1 |
| Multiplexer/Demultiplexer Circuit | 8:1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 1 Circuit IC Switch 8:1 10 Ohm 16-CFlatPack | Current - Leakage (IS(off)) (Max) | 180nA |
| Crosstalk | -60dB @ 10MHz | Charge Injection | 3pC |
| Channel-to-Channel Matching (ΔRon) | 1.25 Ohm | Channel Capacitance (CS(off), CD(off)) | 13pF, 85pF |
| Base Part Number | ADG798 | -3db Bandwidth | 55MHz |
